Automatic Carton Box Making Folder Gluer
Classification:
- Product Description
-
Features
1.Touch screen control,17 inch CCTV monitor and remote control to make the operation
2.Each section can move horizontally by electric adjustment. React fast and easy to operate
3.Double chain driving structure, accurate ,stable and lower noise.
4.Metal walls are made of international standard thick steel to make the machine running stable and easy to maintain
5.Main bearings are Japan NSK,Main motor are China Mengniu,INVT inverter, performance stable.
6.The upper belt at Folding section driven independently keep the cardboard from slipping.
7.Rectification creasing wheel to minimize the carton joint fishtail.
8.Convey belt pressure adjusted by pneumatic control. Optical eye and counting function work together, convey speed matched with feeding speed. If no products, will speed down to stop the machine.avoid wasting and save cost.
Parameter
Speed：0～240m/min.
Paperboard：220～600g/m²paperboard、B、E、F single corrugated cardboard and double corrugated cardboard.
Folding：The second creasing line and fourth creasing line 180°folding.
Feeding：Continuous feeding.
Power：380V、9.5KW.
Counting range：0～999999个（automatic counting）.

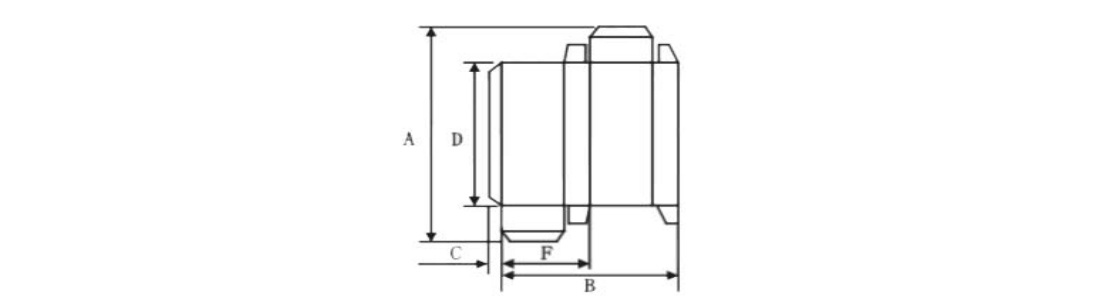

Model KC-HH880 KC-HH1050 KC-HH1200 KC-HH1450 Max A 880mm 1200mm 1300mm 1450mm Min A 130mm 130mm 130mm 130mm Max B 880mm 1050mm 1180mm 1450mm Min B 180mm 200mm 180mm 340mm Min C 10mm 10mm 10mm 15mm Min D 50mm 50mm 50mm 50mm Min F 90mm 100mm 100mm 170mm
