Feeding unit

⊙ Precise treatment Lead edge feeder make the feeding easily and stable
⊙ Side baffles are adjust by PLC and touch screen control,back baffle adjusted by electric control.
⊙ The feeding rollers are grinded and plated with rigid chrome, make blance rectification for running stable.
⊙ Feeding rollers gap adjusted by touch screen(or by manual control)
⊙ Firsts row of feeding rollers: ,seamless steel covered with wear-resistant rubber treated by balance rectification
Down feeding roller seamless steel with knurling surface
⊙ Second row of feeding rollers:Upper feeding roller seamless steel pipe is plated with chrome and grinded surface
Down feeding roller  seamless steel pipe is plated with chrome and grinded surface.
⊙ Upper air draft dust adsorption facility with brush equipped on the exhaust inlet so as to weed out impurity on the printing surface of paper in a great deal to improve the printing quality.
⊙ Automatic zeroing among the units of feeding ,printing and slotting

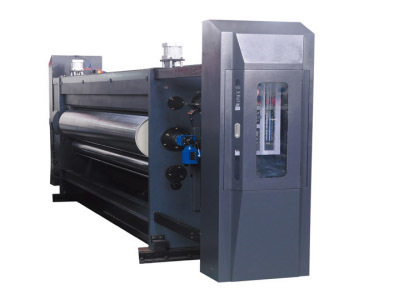

Printing unit（Top printing）

⊙ Roller Transfer at printing unit
⊙ Roller undergoes grinded and plated with rigid chrome, make the balance rectification for running stable
⊙ Rollers gap adjusted by PLC and touch screen control(or by manual control)
⊙ Ceramic anilox and Rubber roller ink distribution structure.
⊙ Ceramic anilox roller steel pipe is plated with ceramic grinded surface and  laser-carved anilox
⊙ Rubber Roller Seamless steel covered with wear-resistance rubber,make middle height and treated by balance rectification.
⊙ Printing pressing roller external diameter is ￠186mm,Steel pipe is plated with rigid chrome and grinded surface.
⊙ Ratchet wheels fixed plate axle
⊙ Loading and unloading printing template, electric controlling CW/CCW rolling by foot switch
⊙ Printing roller Horizontal movement is controlled by PLCladjustment of +/-5mm
Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding and rises up to leave printing template after stopping feeding.)
⊙ Printing roller circular move adopts PLC, touch screen control and inverter adjustment of 360o.(running and stopping can be adjusted)
⊙ Automatic reposition after washing the printing template during the printing procession.
⊙ Automatic ink washing system for option

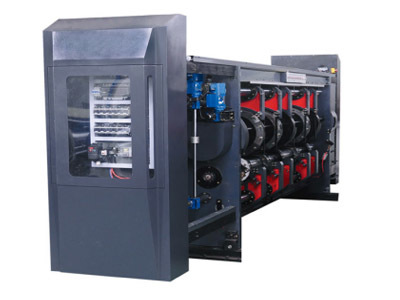

Slotting unit

⊙ Slotting unit consist of pre creasing wheel, creasing wheel and slotting unit
⊙ Creasing wheel with PU Plated for good creasing and avoiding paper crack
⊙ Pre creasing roller and creasing roller gap adjusted by touch screen control
⊙ Creasing rollers plated with rigid chrome and grinded surface
⊙ Slotting holder rollers plated with rigid chrome and grinded surface
⊙ 5 slotting knives
⊙ Cast steel slotting guide plate makes slotting precise and never damage the slotting knife.
⊙ Linear Guide rail ,screw shaft and gear guide rail make the slotting guide plate move smooth and accurate.
⊙ 9 Crsi Slotting knives
⊙ All the knives move and slotting holder move adjusted by PLC control
⊙ Slotting holder rollers gap adjusted by electric control
⊙ Feeding roller gap adjusted by PLC control(or by manual control)
⊙ The feeding rollers are grinded and plated with rigid chrome, make blance rectification for running stable.

Die cutting unit

⊙ Die cutter roller made of steel moulding material and plated with rigid chrome and grinded surface
⊙ Anvil cover roller steel-moulding material is plated with rigid chrome and grinded surface
⊙ Die cutting roller and anvil cover roller gap adjust by electric control
⊙ Feeding roller gap adjusted by PLC and touch screen control(or by manual control)
⊙ The feeding rollers are grinded and plated with rigid chrome, make blance rectification for running stable.
⊙ Die cutting roller circular movement is controlled by PLC, touch screen control and electric numerical adjustment of 360°(running and stopping can be adjusted)
⊙ Depair and Maxdura anvil cover for option
⊙ Anvil cover repairing knife installed
